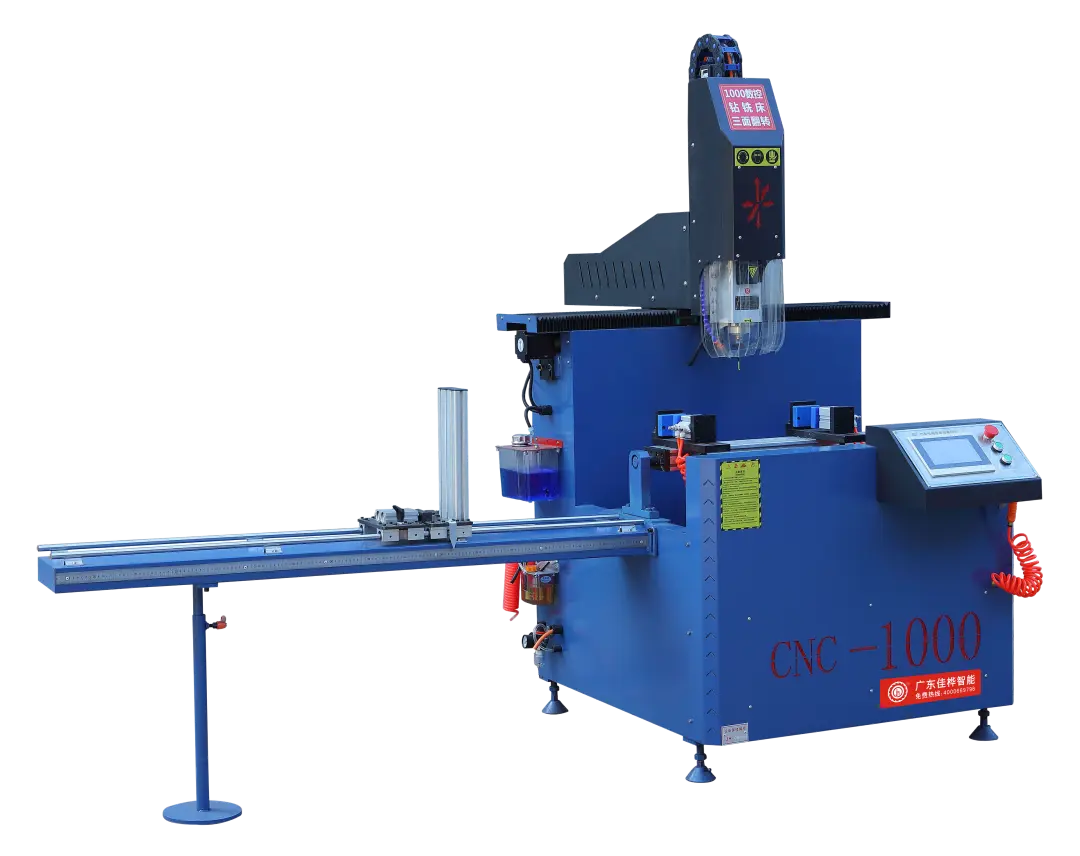

CNC Aluminum Milling Machine
A high-precision CNC aluminum milling machine designed for efficient, accurate processing of flat aluminum profiles with user-friendly operation and compact design.
CNC Aluminum Milling Machine Features
The CNC Aluminum Milling Machine is designed for precise and efficient milling and drilling of flat aluminum profiles. It features a three-axis CNC control system, enabling high-speed and high-accuracy positioning. Equipped with specialized workpiece fixtures and an automatic positioning plate, it ensures easy and reliable operation while supporting batch processing with a single setup. The machine’s compact structure minimizes space requirements, while imported cutting tools deliver fast milling speeds and excellent results. With a user-friendly interface that allows for direct drawing input, it offers reliable performance, simple operation, and high productivity.
CNC Aluminum Milling Machine Parameters
Cutting
| X-axis Range | 700mm |
| Y-axis Range | 180mm |
| Z-axis Range | 250mm |
| X-axis Positioning Accuracy | ±0.05mm |
Power
| Input Power | 3.5kW |
| Air Pressure | 0.6~0.8MPa |
| Input Voltage | 380V/50Hz |
Machine
| X-axis Speed | 0~60m/min |
| Spindle Speed | 0~2800r/min |
| Working Area (W×H×L) | 150×150×580mm |
| Machine Size | 1000×1000×1800mm |
| Machine Weight | 500kg |
CNC Aluminum Milling Machine Details

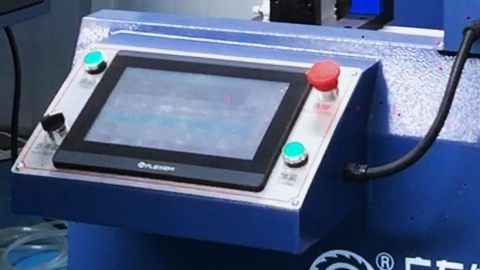

CNC Control Console

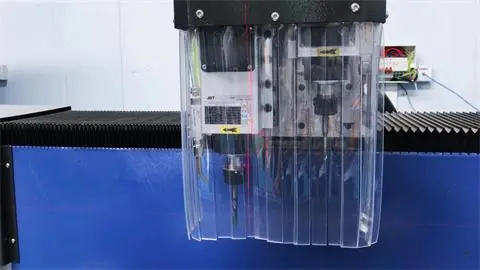

Dual-Head Drilling and Milling System

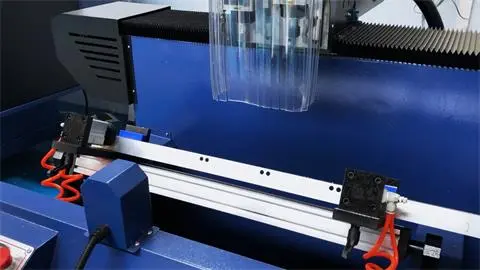

Automatic Flipping System
